The 2017 Suzuki KingQuad ATV lineup includes a wide range of vehicle options, price points and color styles. Assembled in the USA, all Suzuki KingQuad ATVs deliver proven Suzuki reliability, hard-working features, and powerful performance. With more than three decades of proven leadership, Suzuki ATVs have evolved from the “First on 4 Wheels” to the finest on four wheels. The 2017 lineup of KingQuad ATVs proves that “Nothing is Built Like a KingQuad.”
2017 Suzuki QuadSport Z50 & QuadSport Z90

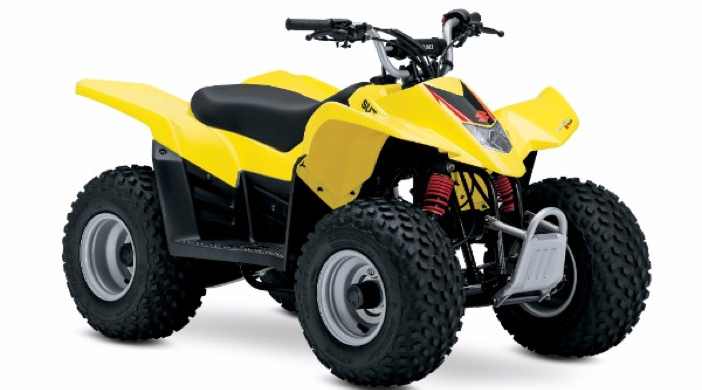

Ideal for young riders and those just entering the sport, the 2017 Suzuki QuadSport Z50 is 100-percent Suzuki made, and designed with an emphasis on safety and adult control. It’s the perfect choice for younger off-road adventurers.
An air-cooled, four-stroke 49cc engine puts out efficient and reliable power, and is sized right to keep the QuadSport Z50 ATV lightweight and low to the ground. The vehicle features a keyed ignition and remote tether stop switch to give adult supervisors the control they need. A push-button electric starter delivers easy starting when it’s time to ride. The child-sized controls are adjustable, and a screw-type throttle limiter gives adults the ability to limit maximum power output for graduated learning.
The 2017 Suzuki QuadSport Z90 is 100-percent Suzuki made, and is powered by a compact 90cc four-stroke, air-cooled engine designed for consistent performance, durability and low maintenance. Single A-arm front suspension with twin independent shock absorbers and single-shock rear suspension provide long wheel travel for a smooth, comfortable ride.
Both these QuadSport ATVs feature a smooth-running CVT automatic transmission for easy operation; they let a rider focus on riding. They also use keyed ignitions and backup recoil starters.
QuadSport Z50 – Yellow/Black – $1,999
QuadSport Z90 – Black/Yellow – $2,899
2017 Suzuki KingQuad 750AXi Power Steering and 750AXi
The 2017 Suzuki KingQuad 750AXi is Suzuki’s most powerful and technologically advanced ATV. The 722cc fuel-injected, liquid-cooled engine produces abundant torque and ample top-end power – it’s the standard for Utility Sport ATVs delivering the right balance of working power and trail-ready performance. A twin-spark-plug cylinder head improves combustion, eases cold engine starts and allows for consistent performance.
The QuadMatic CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system helps control the vehicle during steep descents. Rider friendly, handlebar-mounted push-button controls permit easy selection between 2WD, 4WD and differential-lock 4WD modes.
The KingQuad’s easily adjustable independent front and rear suspension gives comfortable control over rough obstacles while still being able to haul or tow when the job requires it. Braking is handled by dual hydraulic front disc brakes plus a sealed, multi-plate rear brake system. The rear brake’s clutch-type design provides greater durability, reduced unsprung weight, and low-maintenance.
The advanced Power Steering system on the KingQuad 750AXi PS model provides responsive handling, reduces turning effort, and damps vibration to the rider. The system also permits the use of higher handlebars for more rider comfort.
The KingQuad 750AXi ATVs and their engines are assembled with pride in America at the Suzuki manufacturing facility in Rome, Georgia.
KingQuad 750AXi Power Steering – Red, Green – $9,199
KingQuad 750AXi Camo Power Steering – True Timber XD3 Camo – $9,699

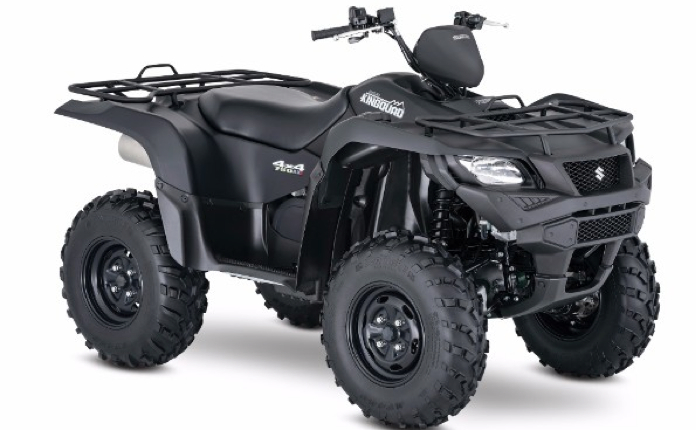

KingQuad 750AXi Special Edition (PS) – Matte Black – $9,599
KingQuad 750AXi – Red, Green – $8,599

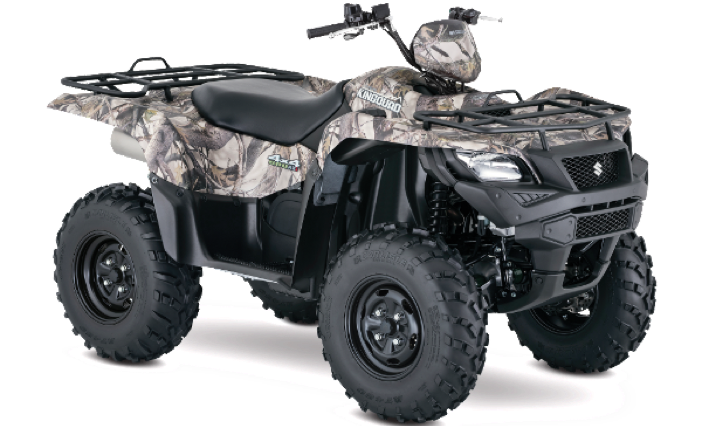

KingQuad 750AXi Camo – True Timber XD3 Camo – $8,999
2017 Suzuki KingQuad 500AXi Power Steering and KingQuad 500AXi
The Suzuki KingQuad 500AXi ATVs are equipped with many of the same high-quality features as the KingQuad 750AXi. These full-size ATVs run the same chassis, suspension and brakes as the 750AXi KingQuad models, and are powered by a 493cc fuel-injected four-valve engine, delivering highly capable utility-sport ATVs at a lower price.
The EFI-equipped engine, utilizing a multi-hole fuel injector, provides exceptional performance throughout the powerband with a strong mid- to high-end punch. Its cylinder is canted forward for a low center of gravity resulting in reduced engine height and lower seat height.
The KingQuad’s advanced chassis lets you conquer rough obstacles with ease while still being able to haul or tow what you need to get the job done. It features independent double A-arm front suspension, plus fully independent, A-arm/I-beam rear suspension.
The QuadMatic CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.
Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD and differential-lock 4WD. An override button can be used to override the normal speed limiter when stuck in the mud.
The KingQuad 500AXi ATVs and their engines are assembled with pride in America at the Suzuki manufacturing facility in Rome, Georgia.
KingQuad 500AXi Power Steering – Red, Green – $8,299
KingQuad 500AXi Camo Power Steering – True Timber XD3 Camo – $8,699
KingQuad 500AXi Special Edition (PS) – Matte Black – $8,599
KingQuad 500AXi – Red, Green – $7,399
KingQuad 500AXi Camo – True Timber XD3 Camo – $7,999
2017 Suzuki KingQuad 400ASi and KingQuad 400FSi
Suzuki offers the KingQuad 400 ATVs in two industry-unique options: The KingQuad 400ASi uses Suzuki’s technically advanced fully automatic QuadMatic CVT transmission. It features high- and low-range settings and reverse, plus an advanced engine-braking system that minimizes free-wheeling with the throttle off. The KingQuad 400FSi gives riders a five-speed manual transmission with automatic clutch, making it the ideal performer for riders who prefer the control of a foot-shift transmission.
Both KingQuad 400 ATVs feature Suzuki’s fuel-injected 376cc four-stroke, four-valve engine that is tuned to produce the right blend of hard-working power and trail-response fun. Suzuki’s class-leading fuel-injection system contributes to smooth power output, especially in the mid-to-high range, as well as more consistent cold starts. A handlebar-mounted lever permits easy selection of 2WD or 4WD drive modes.
Both models also feature full-size chassis’ running on 25-inch tires with aggressive all-conditions tread. Independent front A-arm suspension offers smooth performance and remarkable ground clearance. A swingarm rear-suspension with twin shock absorbers provides agile handling and plush ride.
Like all KingQuad’s, the 400ASi and 400FSi ATVs and their engines are assembled with pride in America at the Suzuki manufacturing facility in Rome, Georgia.
KingQuad 400ASi – Red, Green – $6,499
KingQuad 400ASi Camo – True Timber XD3 Camo – $6,899
KingQuad 400ASi Special Edition – Matte Black – $6,799
KingQuad 400FSi – Red, Green – $6,499
Article courtesy Motorcycle & Powersports News.
